Benefits
• Built-in inspection slot at the base of the hanger to aid inspection from the ground
• Top flange provides widest area in contact with masonry support allowing superior performance.
• Embossments on JHM stiffen top flange and holes allow improved mortar keying.
• JHM side flange on deeper hangers is much higher than traditional style, providing greatly enhanced resistance to joist rotation.

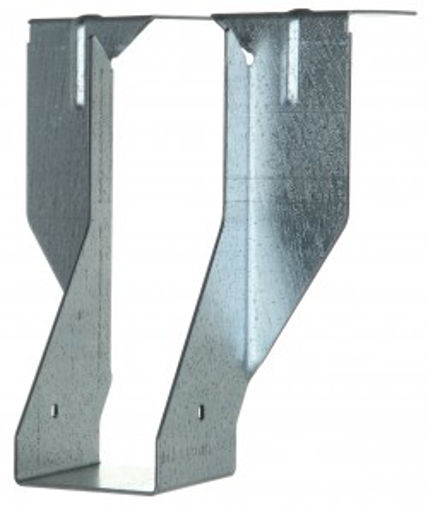

The JHM and JHMI range of joist hangers can be used to connect solid sawn joists, trusses and engineered joists to masonry walls or steel beams.
Products specifications
|
Finish
|
Pre Galvanised Mild Steel |
|
Length
|
190 mm |
|
Width
|
75 mm |
